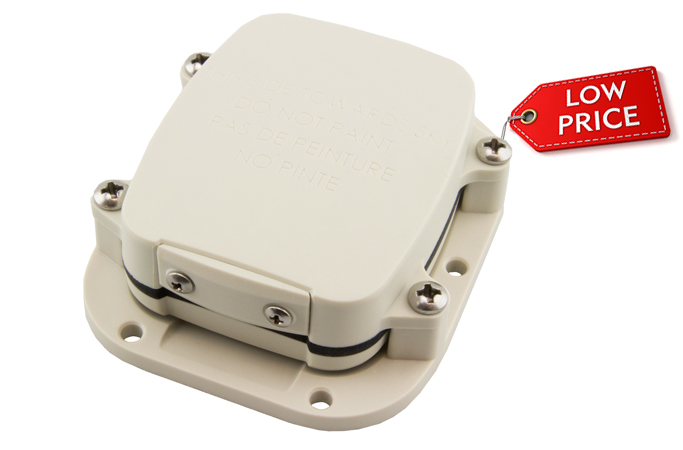

The SkygateOne is designed to track the positions of trailers, cargo containers, heavy construction equipment, generators, boats/barges and any other mobile assets. The SkygateOne also has 2 dry contact inputs, to manage run time of engines and/or other alarm inputs, and one serial port for passive and smart sensors.
The SkygateOne processes GPS satellite signals to obtain its position in terms of longitude and latitude and transmits this information over Satellite Network. In addition to position information, the SkygateOne transmits other message types that include battery status, input alarm status and diagnostic information.

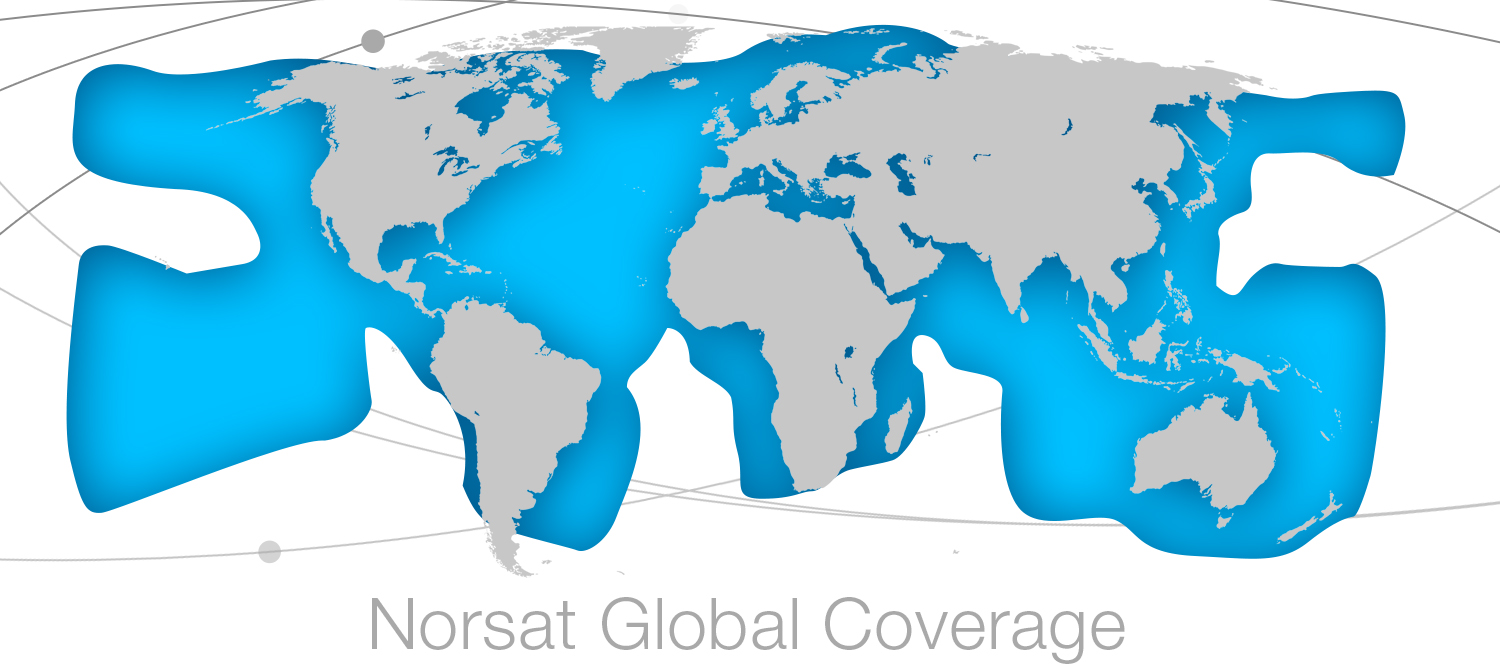

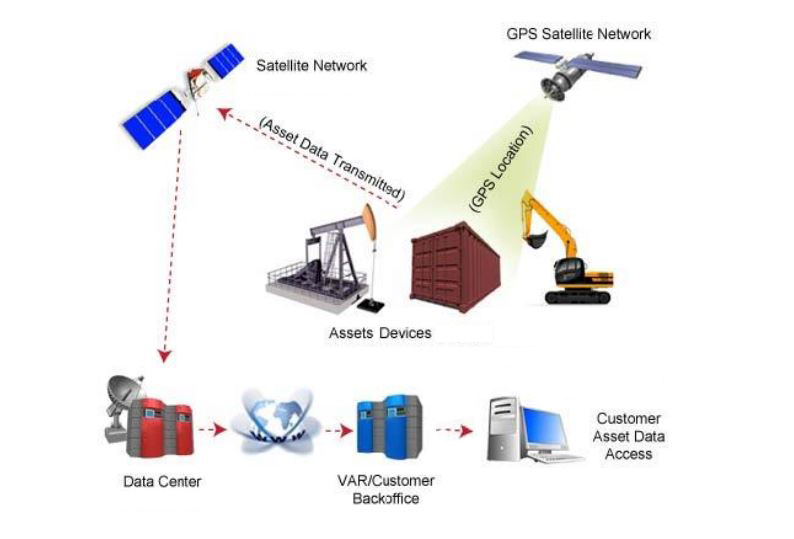

The SkygateOne communicates with both the GPS satellite network and the Satellite Network. All GPS locations are pulled from the GPS network and all transmissions are sent via the Satellite Network.
The SkygateOne has the unique ability to check its GPS coordinates at a programmable rate while it is inside of the Change of Location Area without actually sending a message over the Satellite Network.
For a Location Message, the SkygateOne will wake up at a scheduled interval or time of day and begin to acquire a GPS fix. Once it receives its GPS fix, the SkygateOne will transmit its location to the Satellite Network.
RPM chart analysis RPM chart shows the first and the second engine RPM from a tugboat date 21 April 2017 on 3:26 AM until 2:33 PM. RPM from engine 1 is between 1225-1245 (average=1235) and engine 2 is between 1245-1255 (Average=1250).
Speed chart analysis, according to the chart, tugboat speed fluctuated around 2 - 2,8 knot (average = 2,4 Knot). with RPM generated from engine and the tugboat speed, we can conclude that this vessel is carrying a load. If the vessel didn't carrying any load with the speed and RPM didn't reach the target, we can assume other factor like weather, current, wave, and fraud.
